Use Case Diagrams¶

Use case diagrams define the system boundary, identify all actors, and map capabilities to roles. Diagrams model the target state — open issues are shown as solved features.

01 — Movie Search¶

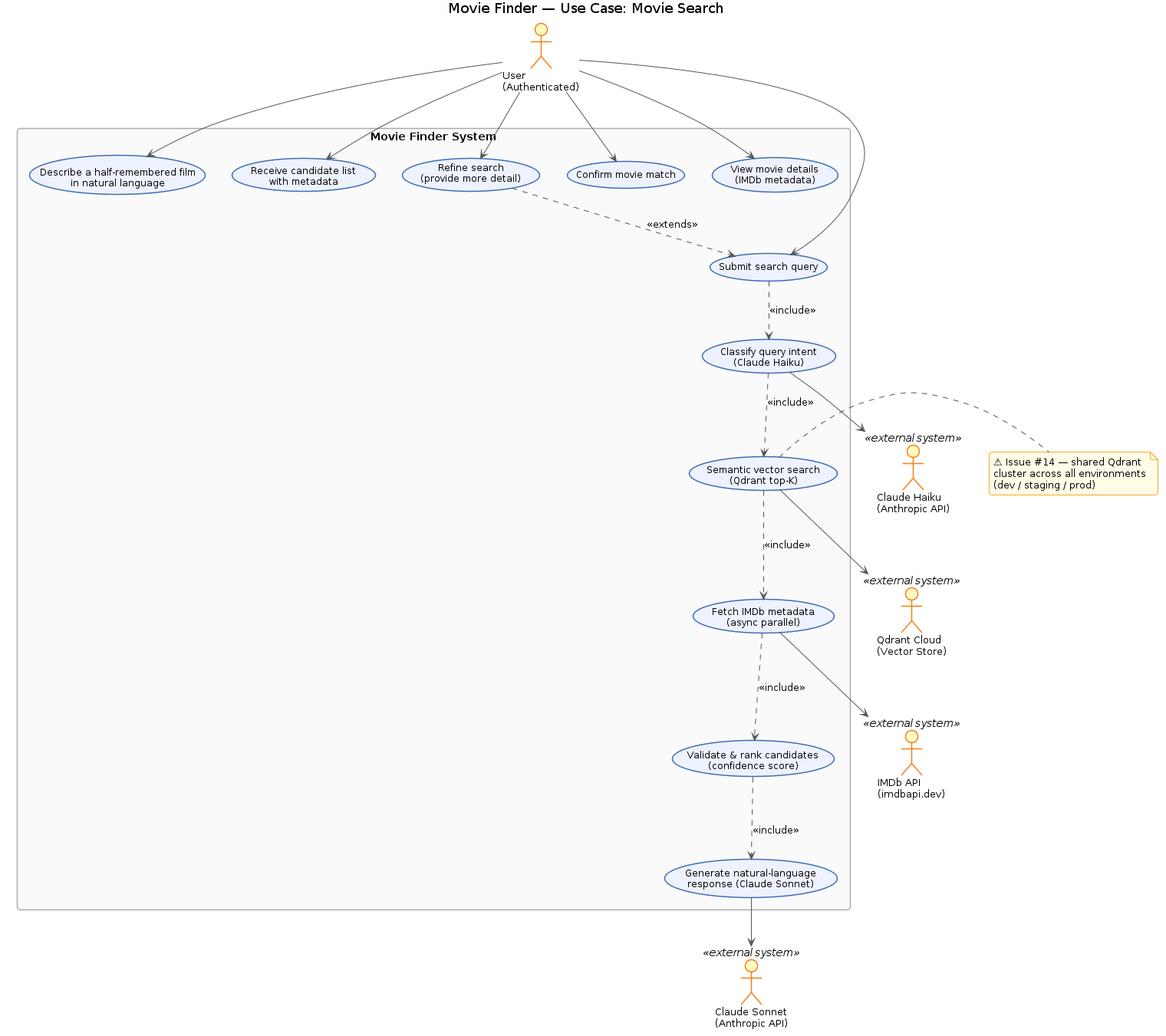

User-initiated semantic search through the full AI pipeline. Shows Claude Haiku (intent classification), environment-scoped Qdrant collection (Issue #14 solution), IMDb enrichment, and Claude Sonnet candidate generation.

02 — Authentication¶

Register, login (with rate limiting), token refresh, and logout with full refresh token revocation against the PostgreSQL blacklist.

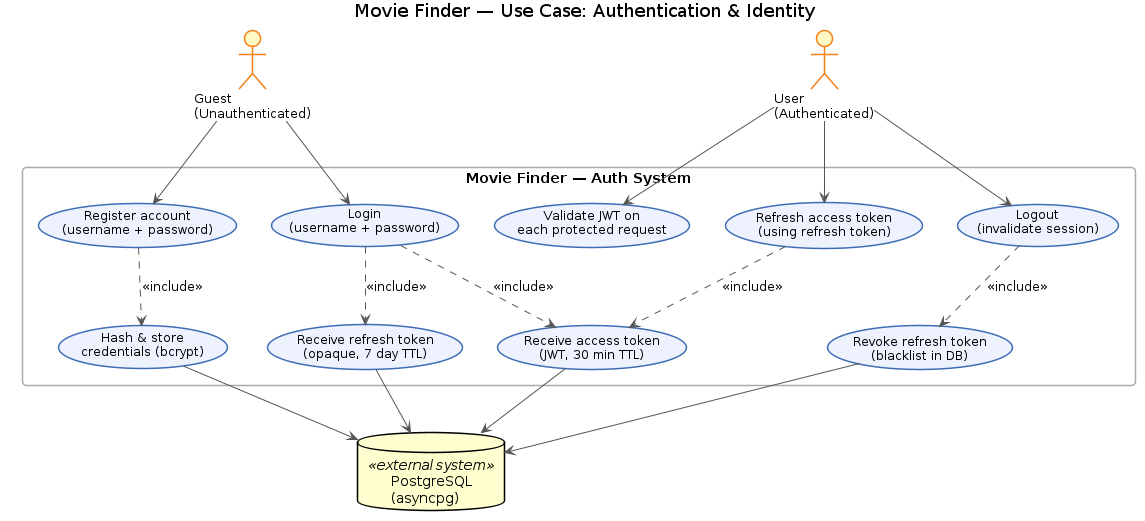

Authentication Use Case

03 — Chat & Q&A¶

Post-confirmation chat: send message, receive SSE-streamed response, paginated session history, and conversation continuation across sessions.

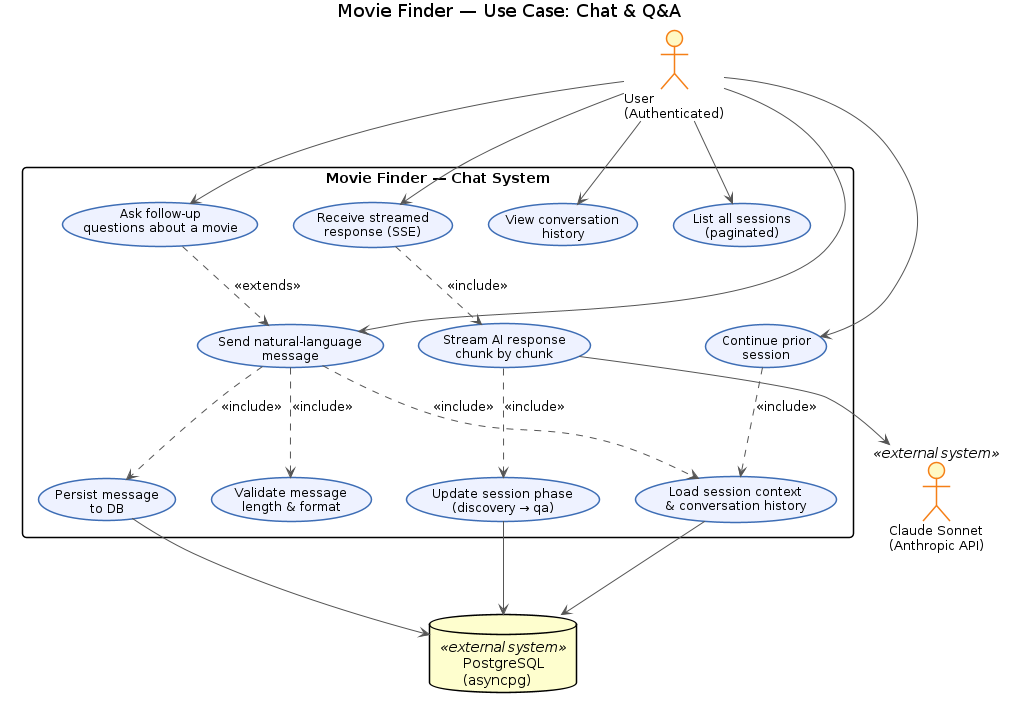

Chat Q&A Use Case

04 — RAG Ingestion (Target Architecture)¶

Parameterized pipeline (Issue #29): runtime selection of embedding provider (Issue #33 / ADR-0008), vector store (Issue #33), chunking strategy (Issue #31), and environment-scoped collection (Issue #14). Metrics exported to GitHub Actions (Issue #21).

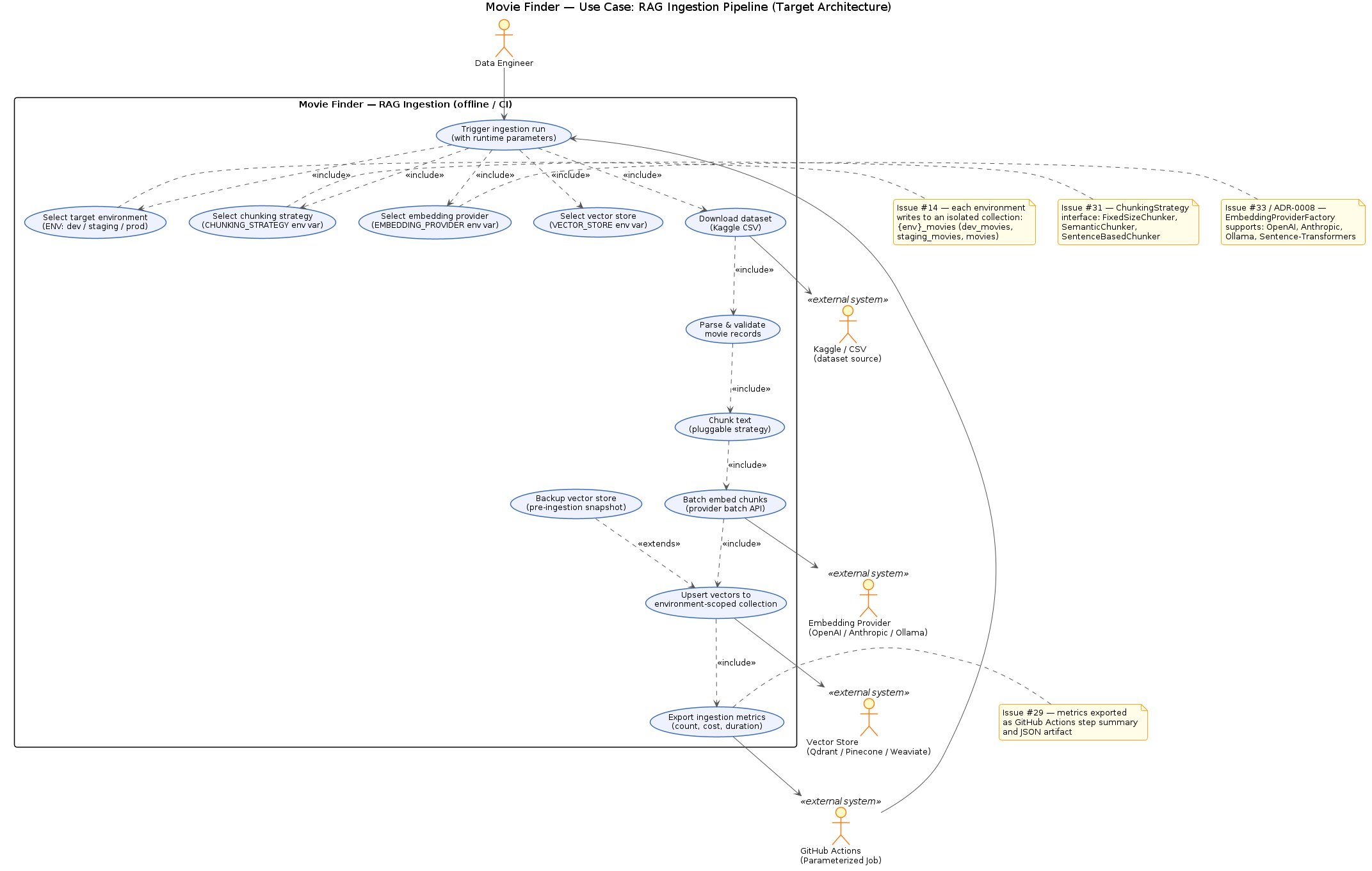

RAG Ingestion Use Case

05 — System Roles Map¶

All actors (Guest, Authenticated User, Data Engineer, DevOps/Admin, GitHub Actions CI) and the full capability set each role exercises.

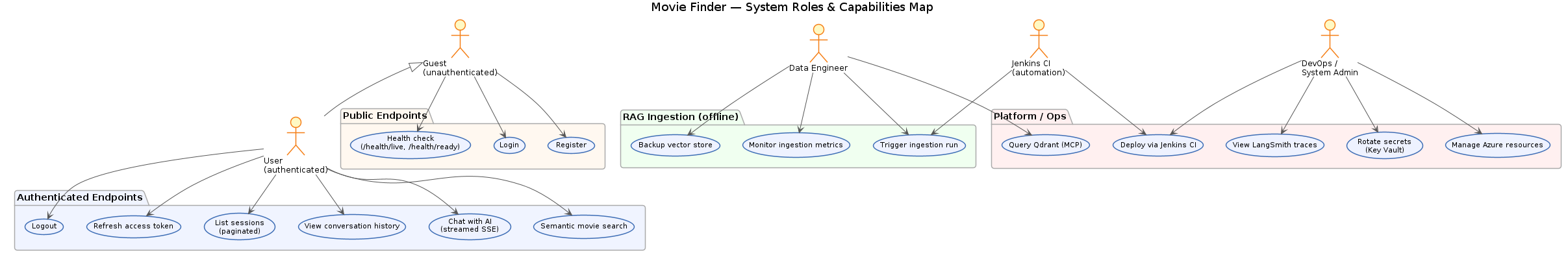

System Roles Map
