Database Design¶

PostgreSQL 16 entity-relationship diagram reflecting the target schema: Alembic-managed migrations, composite indexes on all foreign keys, JSONB confirmed_movie, refresh token revocation flag, and expression index on movie_data->>'imdb_id'.

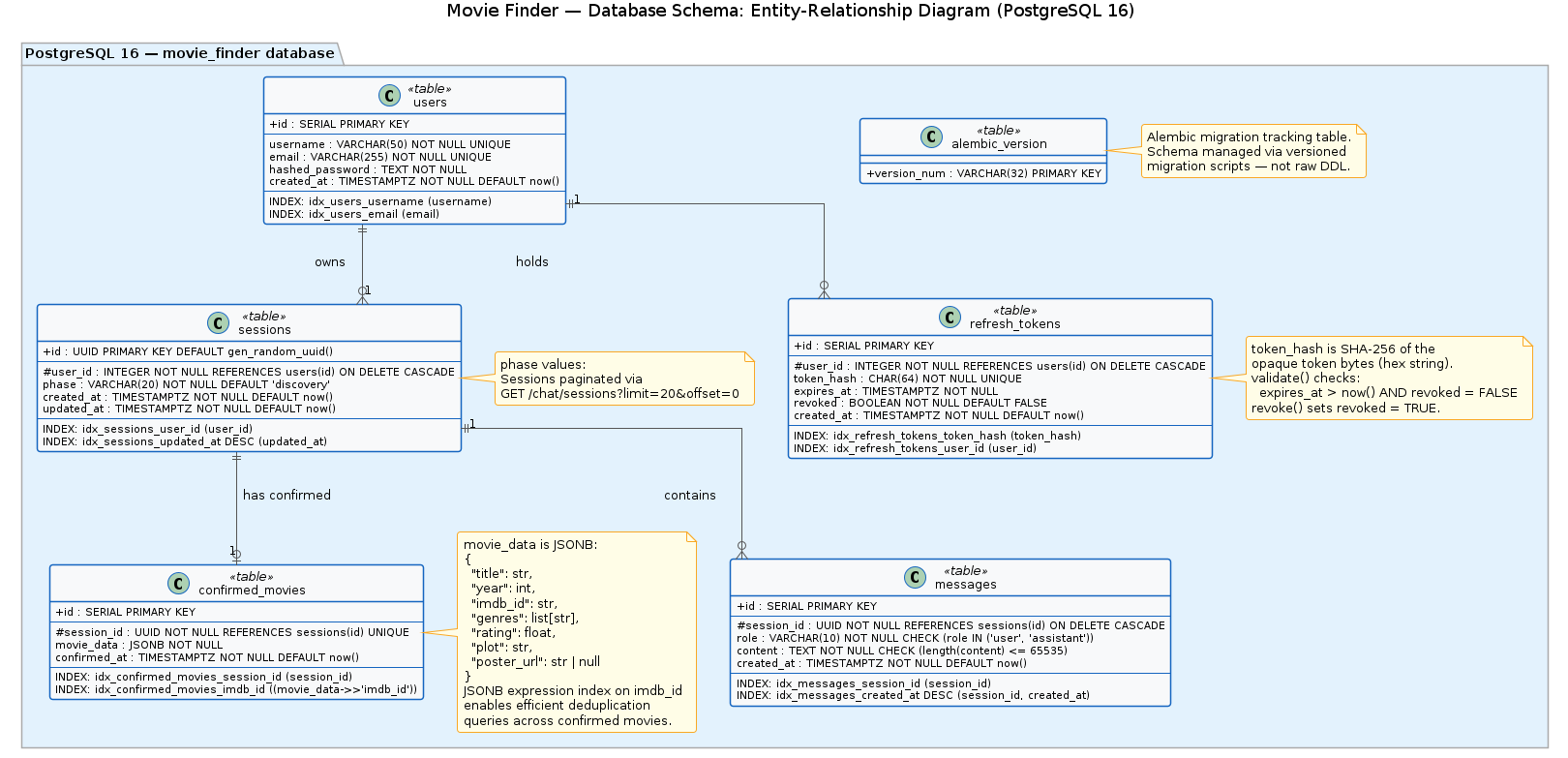

01 — Entity-Relationship Diagram¶

Tables: users, sessions, messages, confirmed_movies, refresh_tokens, alembic_version. All primary keys, foreign keys with ON DELETE CASCADE, data types, check constraints, unique constraints, and indexes are modeled.

PostgreSQL ER Diagram

Schema management

Schema is versioned via Alembic migrations. To apply:

docker compose exec backend alembic upgrade head

To inspect live schema:

docker compose exec postgres psql -U moviefinder -d moviefinder -c "\d+"

Or use the schema-inspector MCP server for natural-language schema queries.
