Component Diagrams¶

Module boundaries, provided/required interfaces, and internal wiring. The inter-service diagram models the target CI/CD and provider topology.

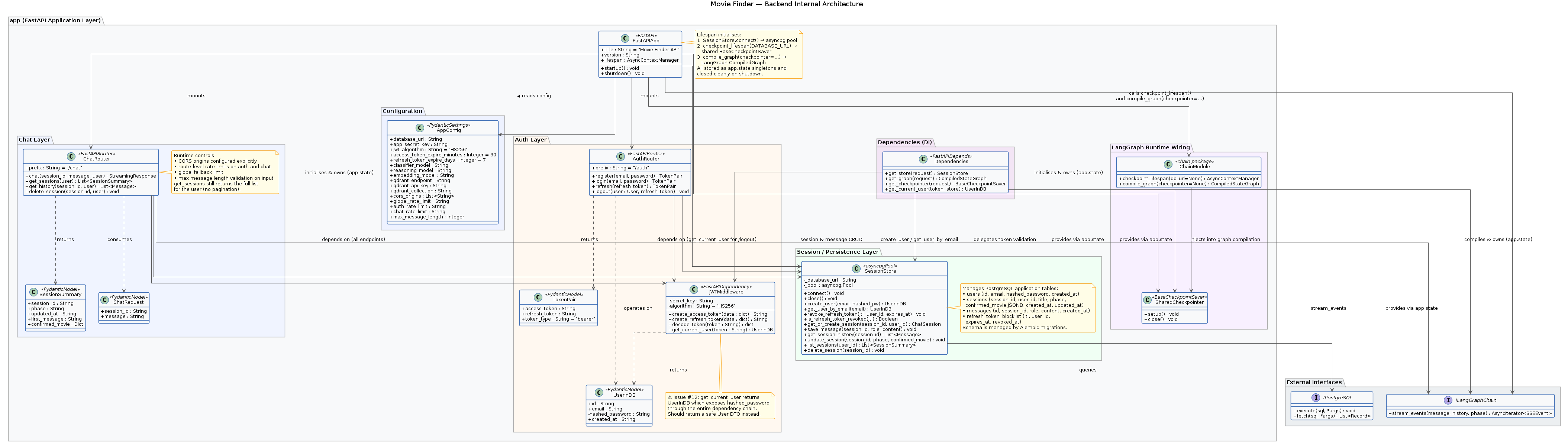

01 — Backend Application (FastAPI)¶

FastAPI layer: routers, JWT middleware, rate-limiting, CORS, asyncpg pool, repository layer, service layer, and Depends() injection chain.

Backend Component Diagram

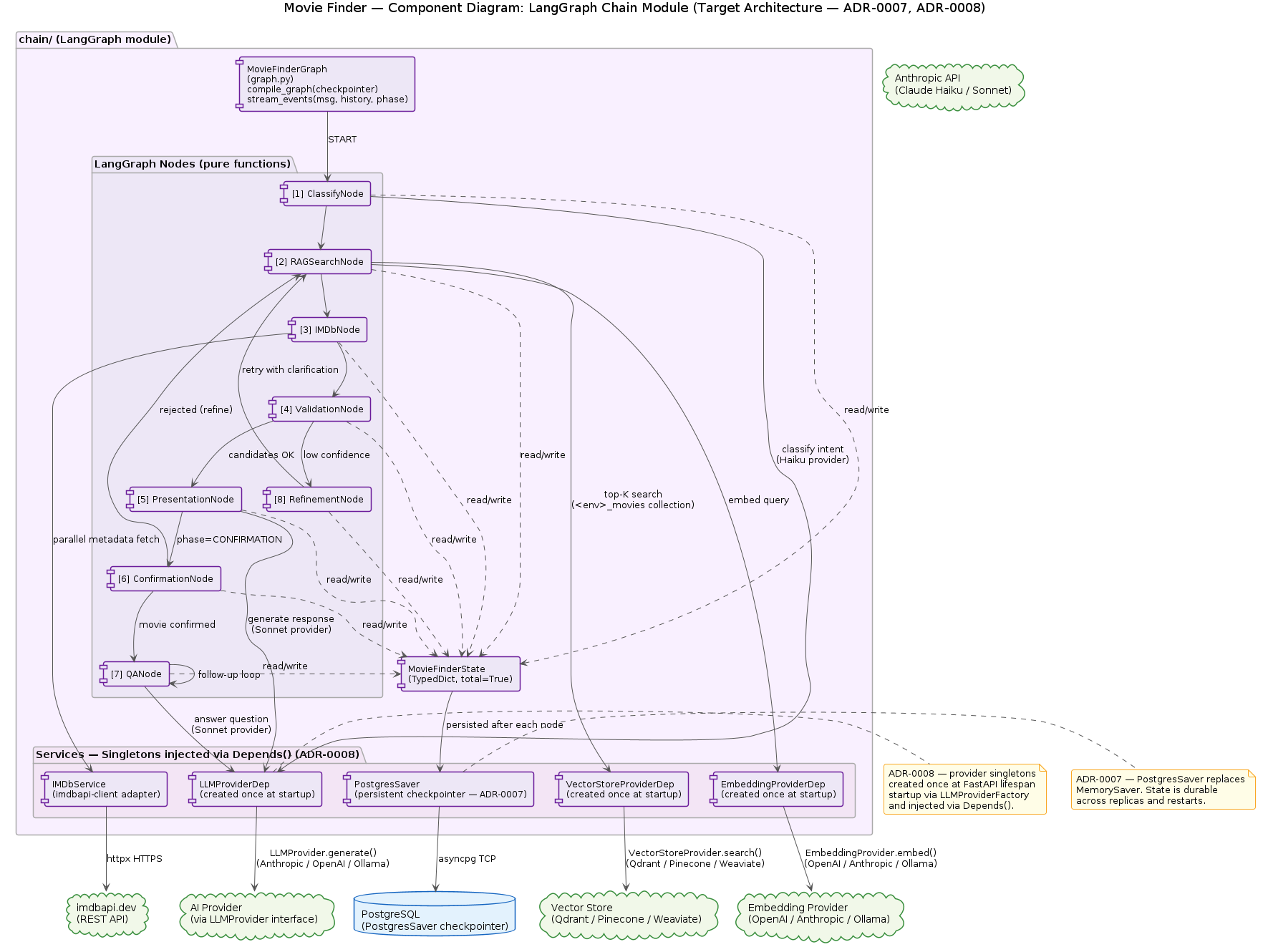

02 — LangGraph Chain Nodes (Target: ADR-0007 + ADR-0008)¶

All 8 nodes with singleton service dependencies injected via Depends() at startup (ADR-0008 — no per-call re-creation), PostgresSaver persistent checkpointer (ADR-0007), environment-scoped Qdrant collection (Issue #14), and full external provider connectivity.

Chain Nodes Component Diagram

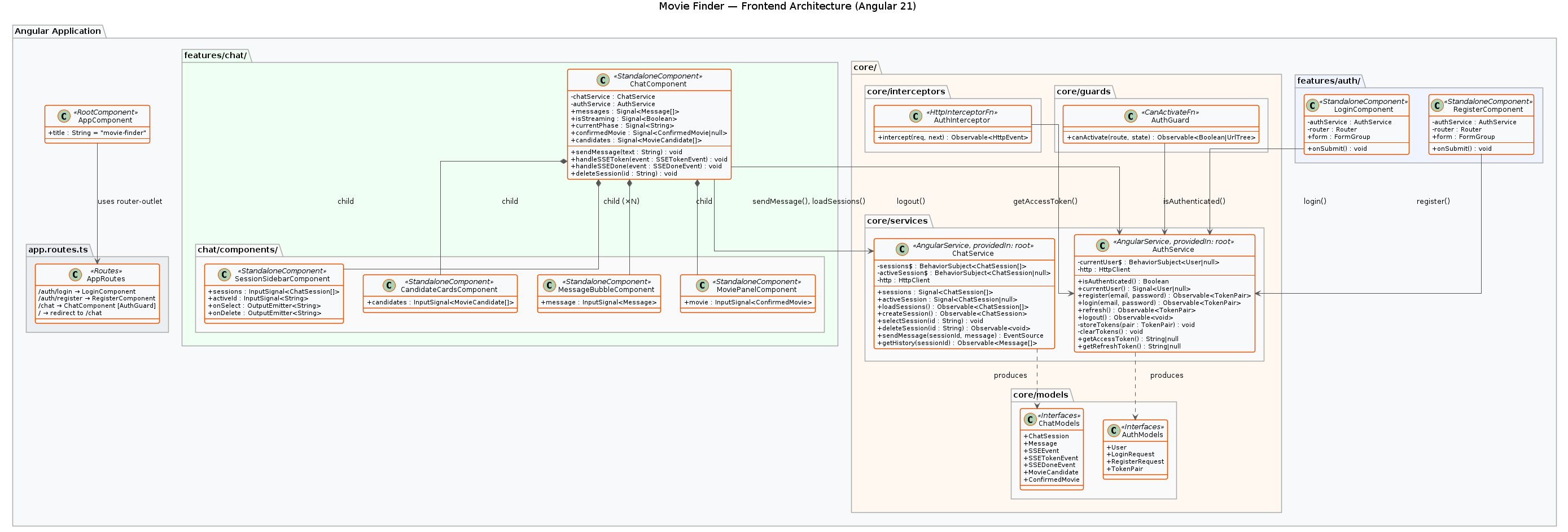

03 — Frontend Architecture (Angular 21)¶

Component tree, core services, route guards, interceptors, and the smart/dumb component split with Signal-based reactive data flow.

Frontend Component Diagram

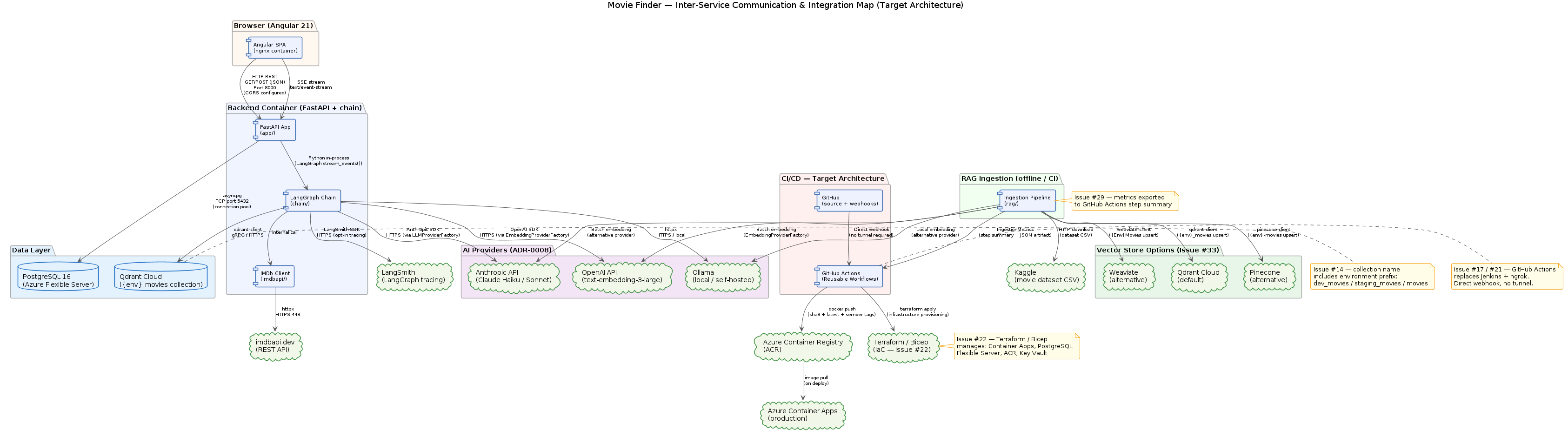

04 — Inter-Service Communication Map (Target Architecture)¶

All cross-repo communication protocols with target topology:

CORS-enabled REST + SSE between Angular and FastAPI
Provider-agnostic AI API connections (ADR-0008: Anthropic / OpenAI / Ollama)
Environment-scoped vector store connections (Issue #14: Qdrant / Pinecone / Weaviate)
GitHub Actions CI replacing Jenkins + ngrok (Issues #17, #21)
Terraform / Bicep IaC managing Azure resources (Issue #22)
RAG ingestion metrics exported to GHA step summary (Issue #29)

Inter-Service Communication
